SB 75 Anderson Connector Set - 600V and 75A - with 15CM DC Cable
Contact material : Pure copper silver plating
Color : Black
Wire Size Range : 16 to 8 (AWG)
Rated current : 75 A
Rated voltage : 600 V
Suitable for - Electric Scooter , E-Rickshaw, Fork Lift , Electric Cycle
(Including GST and Transportation)
For bulk and B2B enquiries kindly mail us at Sales@e-rexindia.com

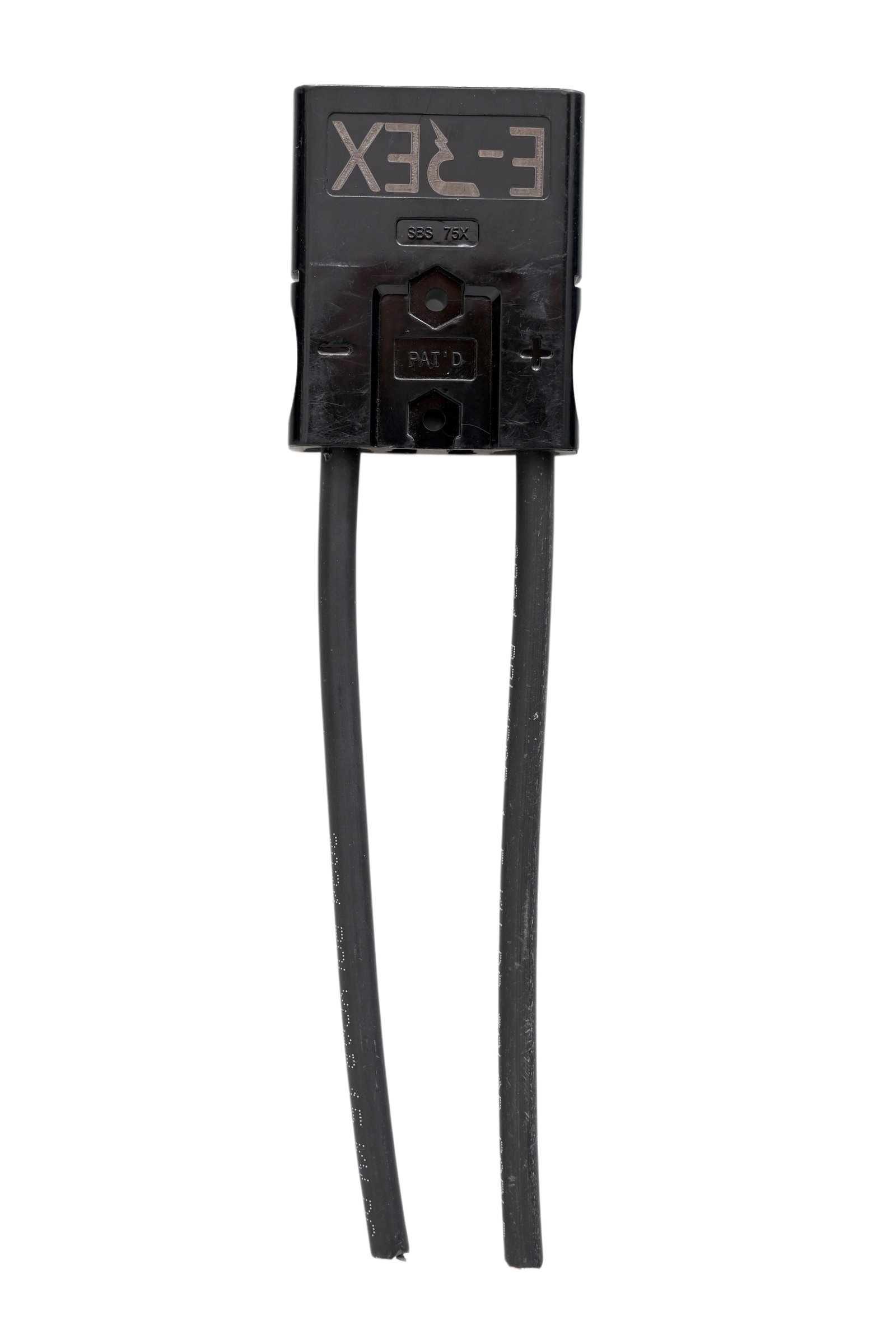

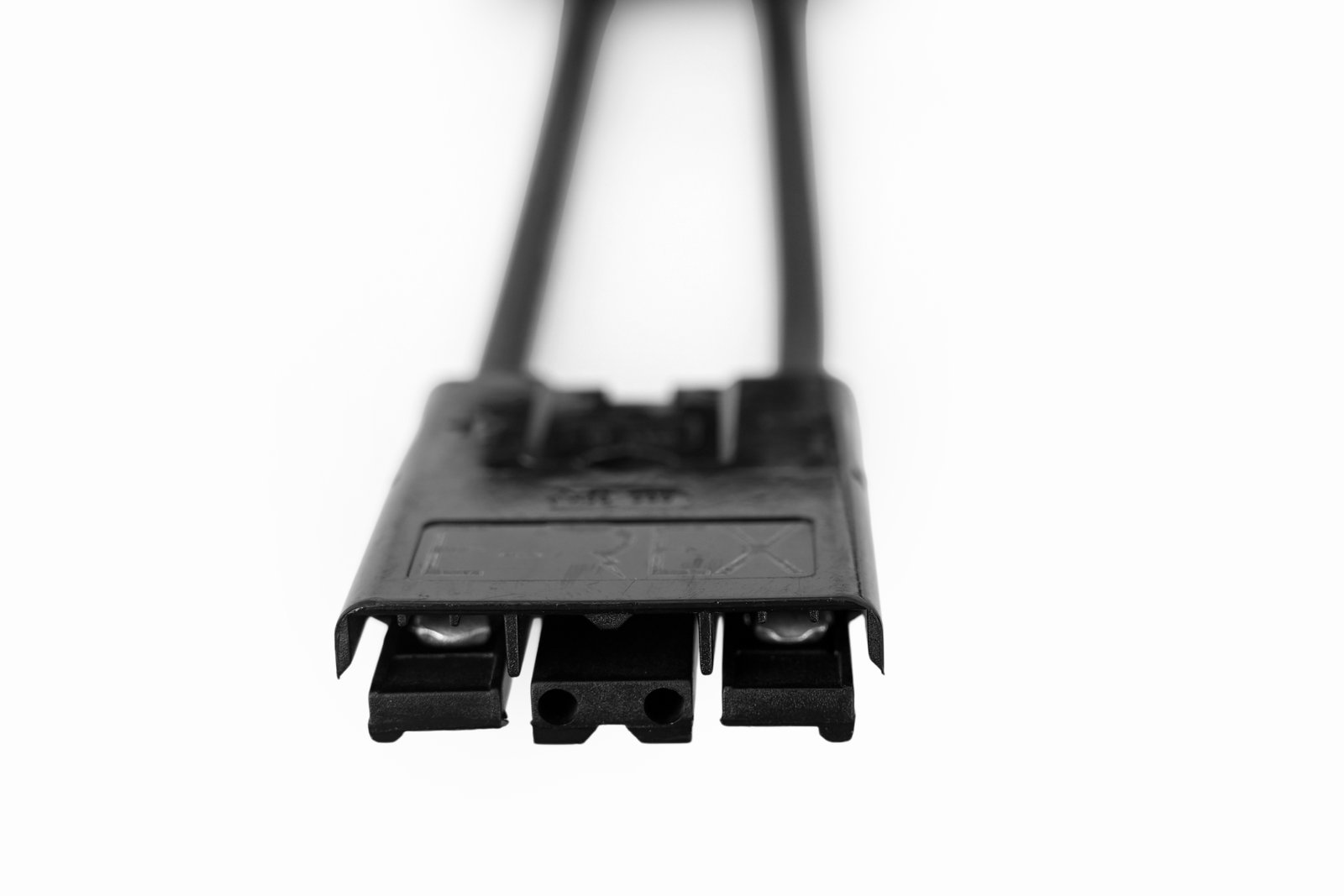

🔌 SB75 Connector Pair with 15cm 6 sq.mm Cable – Heavy-Duty Quick-Disconnect Power Solution
The SB75 connector pair comes pre-attached with 15cm of 6 sq.mm high-quality copper wire, offering a strong, secure, and efficient connection for high-current applications. Ideal for electric vehicles, battery packs, inverters, and industrial power setups.
⚙️ Product Features:
-
Connector Type: SB75 (Anderson-style) Connector – Pair (2 identical connectors for universal mating)
-
Cable Length: 15cm each (approx.)
-
Cable Size: 6 sq.mm – Supports high amperage with minimal power loss
-
Rated Current: Up to 75A continuous
-
Voltage Rating: Up to 600V DC
-
Design: Genderless connector design – any connector can plug into another
-
Material: Durable polycarbonate housing with silver-plated copper terminals
-
Pre-Soldered: Ready-to-use, factory-attached cables—no crimping required
-
Locking Mechanism: Snap-fit locking ensures a tight, vibration-resistant connection
-
Applications: Ideal for lithium battery packs, electric scooters, golf carts, forklifts, solar systems, and DC distribution
🔒 Why Choose SB75?
-
Simplifies high-current DC wiring with plug-and-play convenience
-
Provides stable, low-resistance power transfer
-
Rugged, reusable design for long-term use
-
Perfect for EVs, solar, industrial, and backup power applications
Package Includes :
1* Pair SB75 (Anderson) Connector Set - with 15CM DC Cable
| Specifications | ||
| 1 | Model No. | SB 75 |
| 2 | Housing Material | Polycarbonate / PBT blend |
| 3 | Contact material | Pure copper silver plating |
| 4 | Wire Size Range | 16 to 8 (AWG) |
| 5 | Rated current | 75 A |
| 6 | Rated voltage | 600 V |
| 7 | Vibration resistance | Excellent |
| 8 | Operating Temperature | -20°C ~ 105°C |
| 9 | Color | Black |
15 Days Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of E-Rex customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
