SB 50 to C-13 Male Converter - For Battery Charging
Color : Grey with Balck
Wire Size Range : 6 Sq mm
Rated current : 30 A
Rated voltage : 600 V
Suitable for - for battery charging , Electric Scooter , E-Rickshaw, Fork Lift , Electric Cycle
(Including GST and Transportation)
For bulk and B2B enquiries kindly mail us at Sales@e-rexindia.com
SB50 to C13 Male Charging Converter – Smart Adapter for EV Battery Charging
This custom-built SB50 to C13 Male Converter is designed to simplify the charging process for lithium battery systems where the battery comes with an Anderson SB50 connector and the charger has a C13 female output (standard 3-pin power socket).
It's a plug-and-play solution—no rewiring, no confusion. Just connect and charge!
⚙️ Product Features:
-

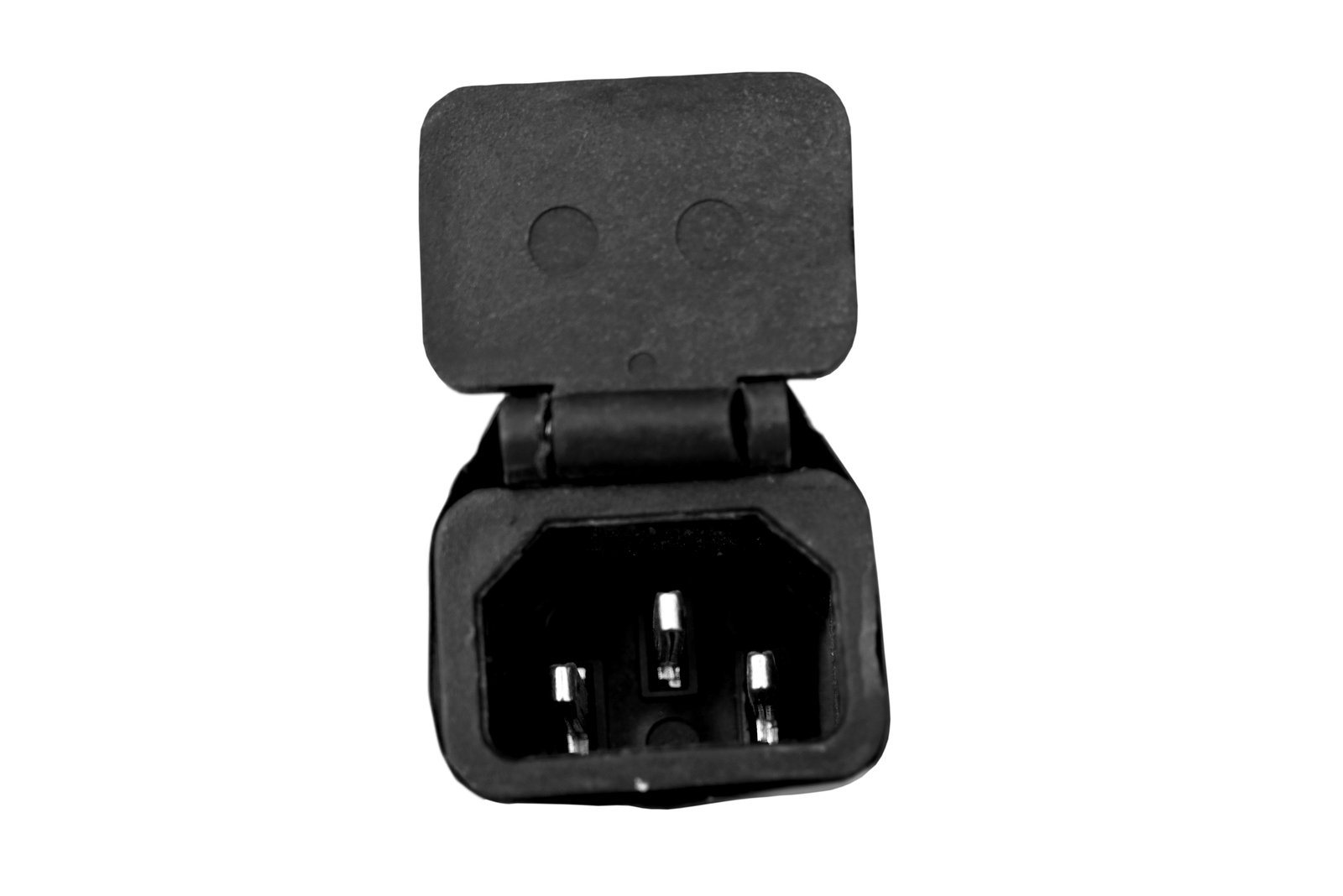

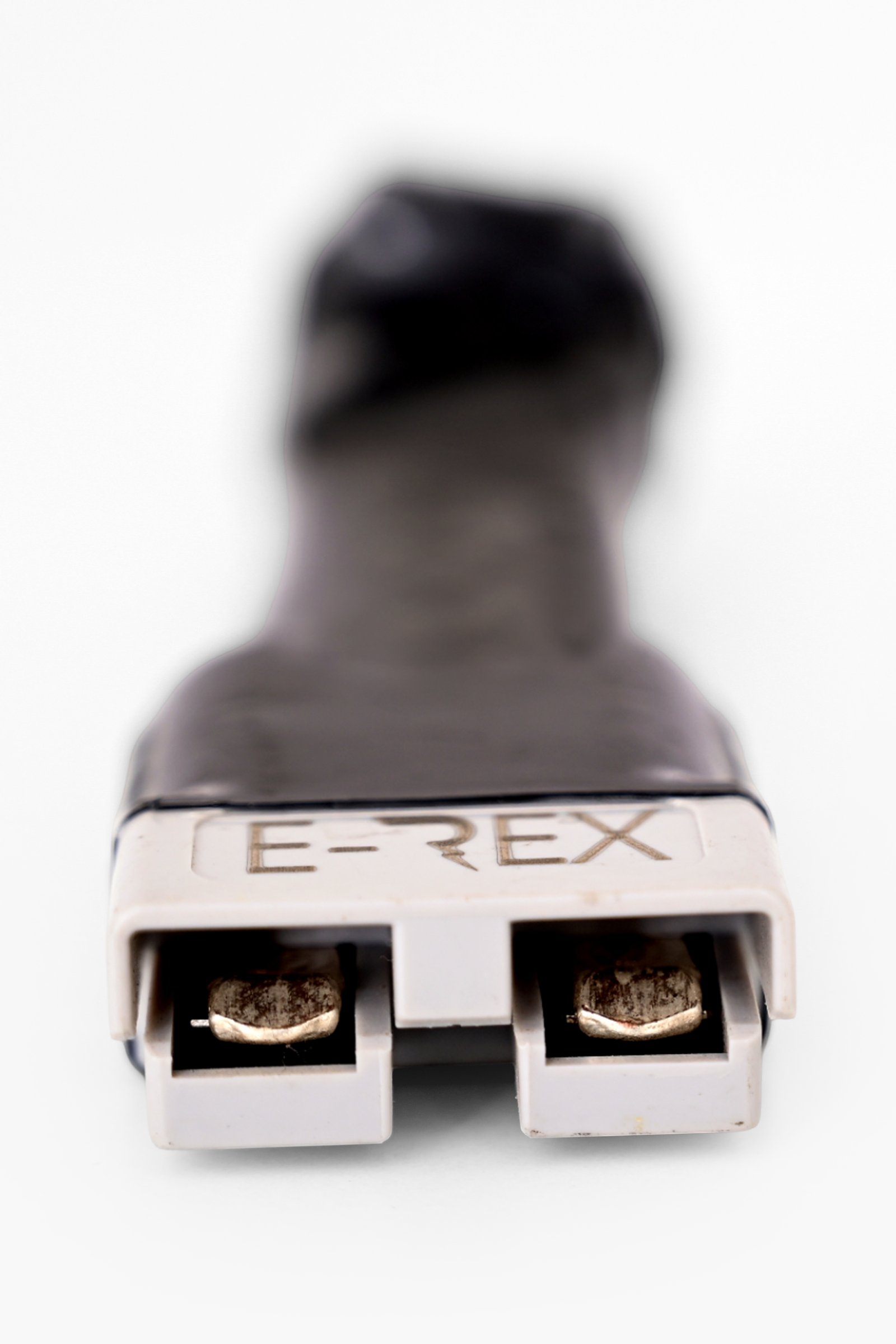

Connector Type: SB50 (Anderson-style) to C13 Male
-
Application: Converts Anderson SB50 output to standard C13 input for seamless charger compatibility
-
Cable Length: ~15cm (customizable if needed)
-
Wire Gauge: 6 sq.mm high-quality copper wire for safe, high-current transfer
-
Build Quality: Industrial-grade heat-shrink insulation, tight terminals, and secure solder joints for long-term use
-
Polarity Markings: Clear + / - symbols to avoid incorrect connection
-
Use Case: Designed specifically for lithium battery packs where the charger uses a C13 female connector (common in many EV and solar chargers)
✅ Why This Converter?
-
Saves time—no need to modify connectors manually
-
Reduces risk of loose or unsafe connections
-
Durable and safe for everyday use
-
Perfect for workshops, EV service centers, and battery dealers
-
Compatible with most low-speed EVs, e-bikes, and portable lithium battery chargers
Package Includes :
1* SB50 Anderson to C13 Male Converter
| Specifications | ||
| 1 | Model No. | SB 50 to C13 MALE |
| 2 | Housing Material | Polycarbonate / PBT blend |
| 3 | Contact material | Pure copper silver plating |
| 4 | Wire Size Range | 6 Sq mm |
| 5 | Rated current | 30 A |
| 6 | Rated voltage | 600 V |
| 7 | Vibration resistance | Excellent |
| 8 | Operating Temperature | -20°C ~ 105°C |
| 9 | Color | Grey with Black |
15 Days Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of E-Rex customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
