C13/C14 IEC power connector set - ZTC Connector
Contact Material : Pure copper, silver plating
Color : Black
Wire Size Range : 1.5 to 2.5 mm² (Equivalent to 16 to 12 AWG)
Size : Approx. 50x22x18 mm (C14 plug side)
Rated Current : 30 A
Rated Voltage : 250 V AC
Suitable For : Lithium Battery Charging, Electric Scooter, E-Rickshaw, Forklift, Electric Cycle
(Including GST and Transportation)
For bulk and B2B enquiries kindly mail us at Sales@e-rexindia.com
C13 to C14 Power Connector Set – Custom Cable Assembly for Battery Charging
This high-quality IEC C13 (female) to C14 (male) connector set is designed specifically for flexible battery charging setups. Ideal for lithium battery users and EV charger integration, this set bridges the gap between Anderson-type battery outputs and IEC-standard charger inputs.
🔌 Product Details:
-

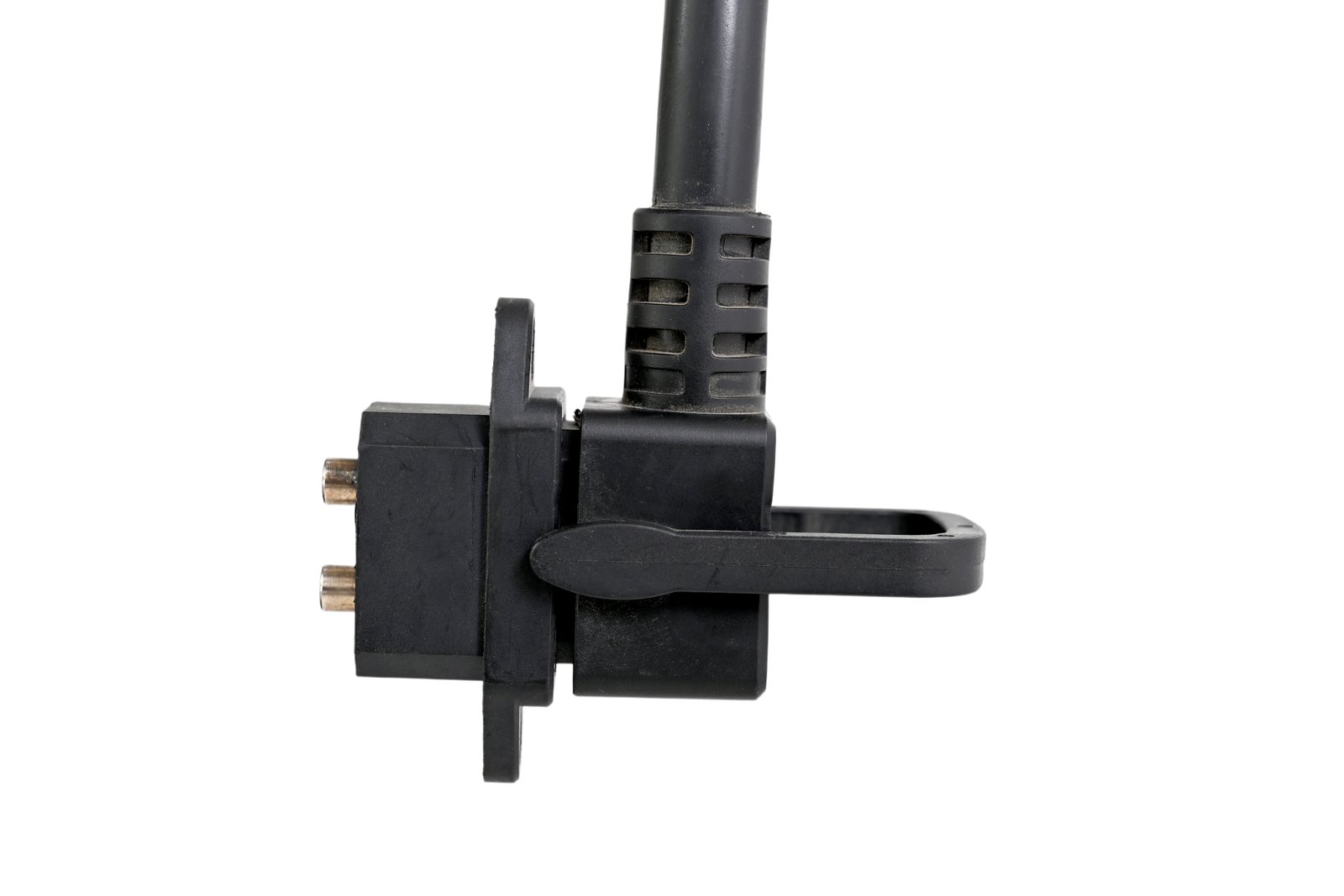

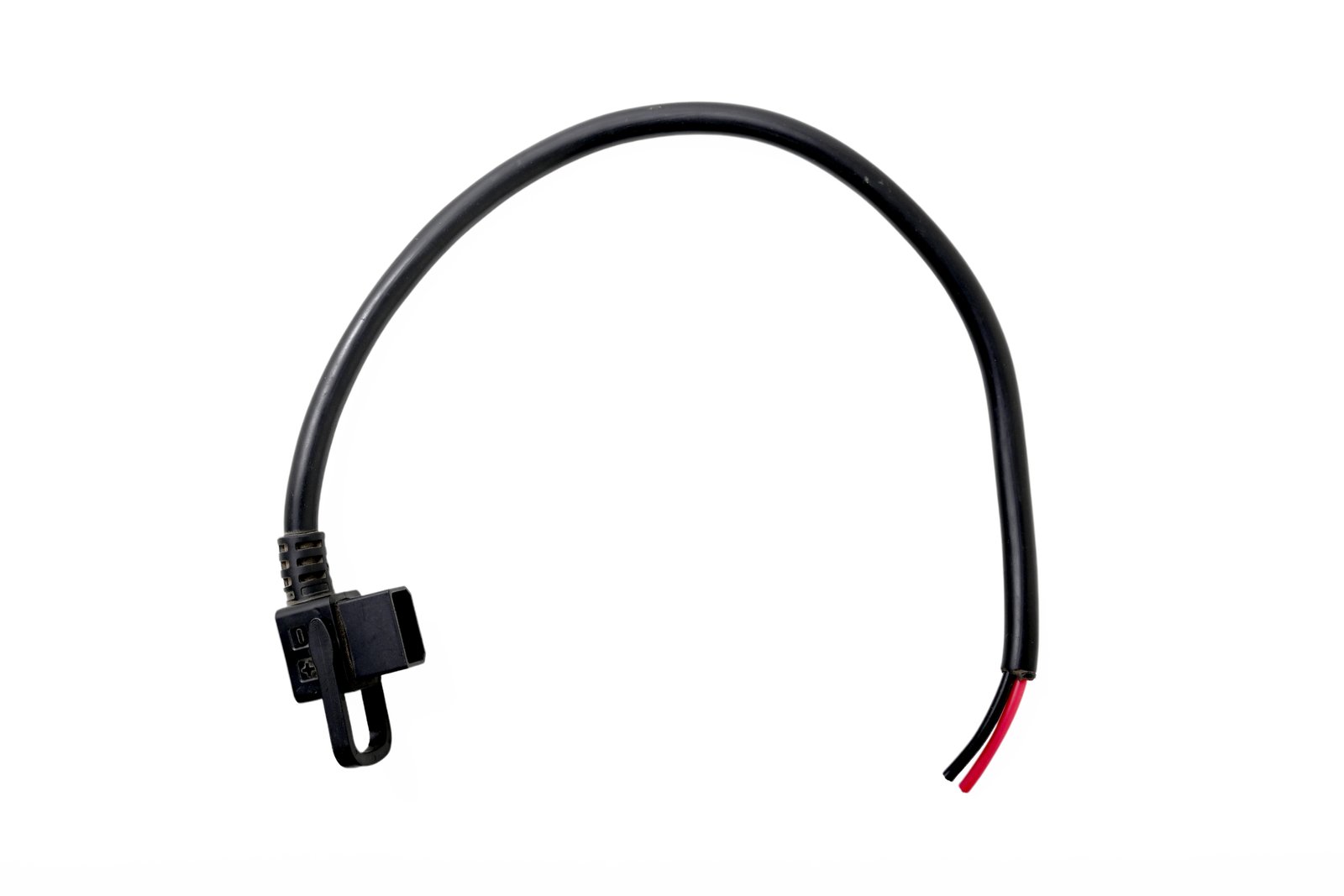

C14 Connector (Male Inlet): Comes pre-attached with 20cm single-core high-quality cable, ensuring reliable AC input connection.
-
C13 Connector (Female Panel Mount): Provided with open-ended wires, allowing customers to solder or configure it as needed based on their charger’s output or panel design.
🔧 Features:
-
Compatible with standard IEC power cords and chargers
-
Durable, secure connection for long-term reliability
-
Compact design for easy installation in tight spaces
-
Ideal for custom battery and charger integrations
💡 Use Case: Perfect for converting Anderson SB 50 battery outputs to standard charger plugs, especially useful in lithium battery applications where C13 (female) is standard on the charger.
Package Includes :
1* C13 Connector + 1 * C14 Connector - with 20CM DC Cable
| Specifications | ||
| 1 | Product Name | C13 to C14 Power Connector Set with Cable |
| 2 | Connector Types | IEC 60320 C13 (Female) & IEC 60320 C14 (Male) |
| 3 | Cable Length | C14 Side: 20cm with Single Core Wire C13 Side: Open End |
| 4 | Wire Type | Copper Single Core |
| 5 | Voltage Rating | 250V AC (IEC Standard) |
| 6 | Current Rating | 30A – 35A |
| 7 | Connector Material | High-grade Thermoplastic (Flame-retardant) |
| 8 | Temperature Rating | -20°C to +70°C |
| 9 | Mounting Type (C13) | Panel Mount with Screw Holes |
| 10 | Applications | Battery Charging, Inverters, UPS, EV Battery Solutions |
15 Days Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of E-Rex customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
